Description
Features

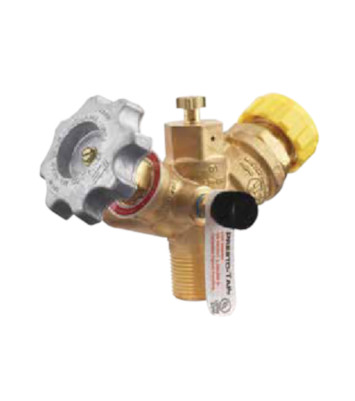

• Combines service valve, vapor equalizing valve with excess flow,
fixed liquid level gauge and plugged pressure gauge opening in
one unit.
• Rugged, 1” wrenching boss on center column minimizes possible
damage during installation.
• Low profile design extends only 3” above the container boss,
allowing use of smaller domes.
• “Y” shape configuration allows for ease of operation with all valves
and gauges easily accessible at all times.
• Designed for installation of a ⅛” M.NPT pressure gauge
or pressure gauge connection. The pressure test port will
communicate to the downstream side of the service valve.
Materials
Body ………………………………………………………………… Forged Brass
Handwheel………………………………………………… Aluminum Die Cast
Valve Stems…………………………………………………………………. Brass
O-Rings ……………………………………………………….. Resilient Rubber
Seat Disc (shut-off valve) ………………………………………………. Nylon
Seat Disc (others) ………………………………………….. Resilient Rubber
