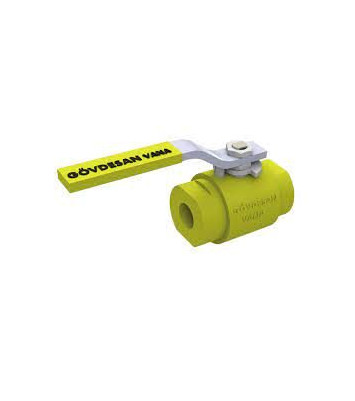

Steel cast threaded ball valve is a robust mechanical device designed for controlling the flow of fluids or gases in pipelines. This valve features a threaded connection that allows it to be easily installed into threaded pipe fittings. Inside the valve, there is a rotating ball that can be turned to regulate, start, or stop the flow. Steel cast threaded ball valves are commonly used in industrial applications where a durable and reliable flow control solution is required.
| DESIGN STANDARTS | |
| Flange Connections | EN 1092-1 |
| End to End Dimensions | EN 558-1 |
| Tests | EN 12266-1 |
Applications:
LPG, Natural Gas, Petrochemicals, Industrial Applications etc.

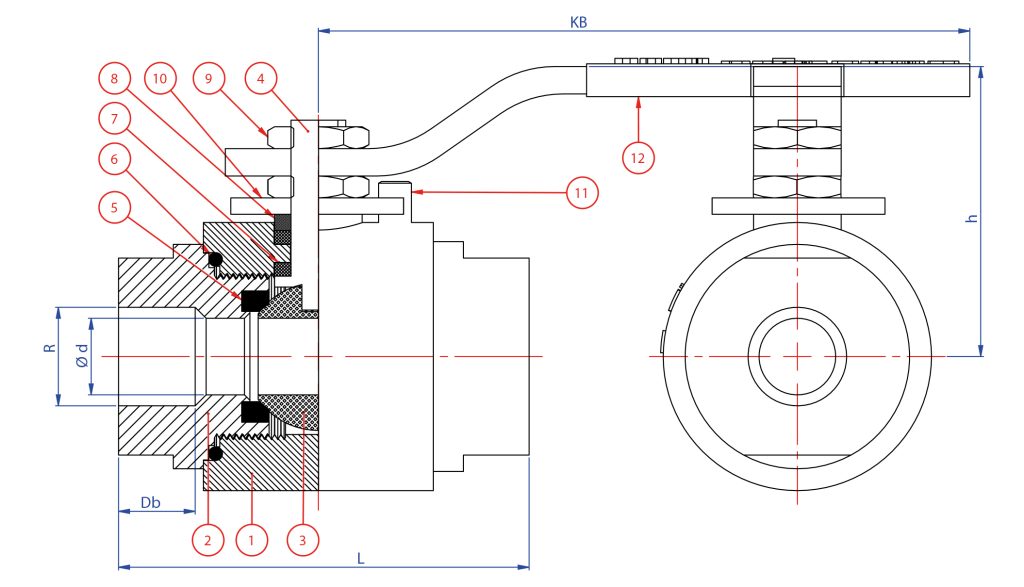

| 1 | Body |
| 2 | Cover |
| 3 | Ball |
| 4 | Stem |
| 5 | Ball Seal |
| 6 | Body Seal |
| 7 | Neck Seal |
| 8 | Pressure Ring |
| 9 | Stopping Ring |
| 10 | Counter Nut |
| 11 | Stopping Pim |
| 12 | Handle |
| PN40 WAFER VALVE DIMESIONS BY SIZE (mm) | |||||||
| DN (Inch) | L | KB | h | R | d | Db | |
| DN15 (½”) | 75 | 150 | 80 | ½” | 15 | 16 | |
| DN20 (¾”) | 80 | 150 | 85 | ¾” | 20 | 16 | |
| DN25 (1″) | 90 | 185 | 90 | 1″ | 25 | 20 | |
| DN32 (1¼”) | 110 | 240 | 100 | 1¼” | 32 | 22 | |
| DN40 (1½”) | 120 | 280 | 120 | 1½” | 40 | 22 | |
| DN50 (2″) | 140 | 280 | 125 | 2″ | 50 | 25 | |
| Size | DN15, DN20, DN25 |
|---|
